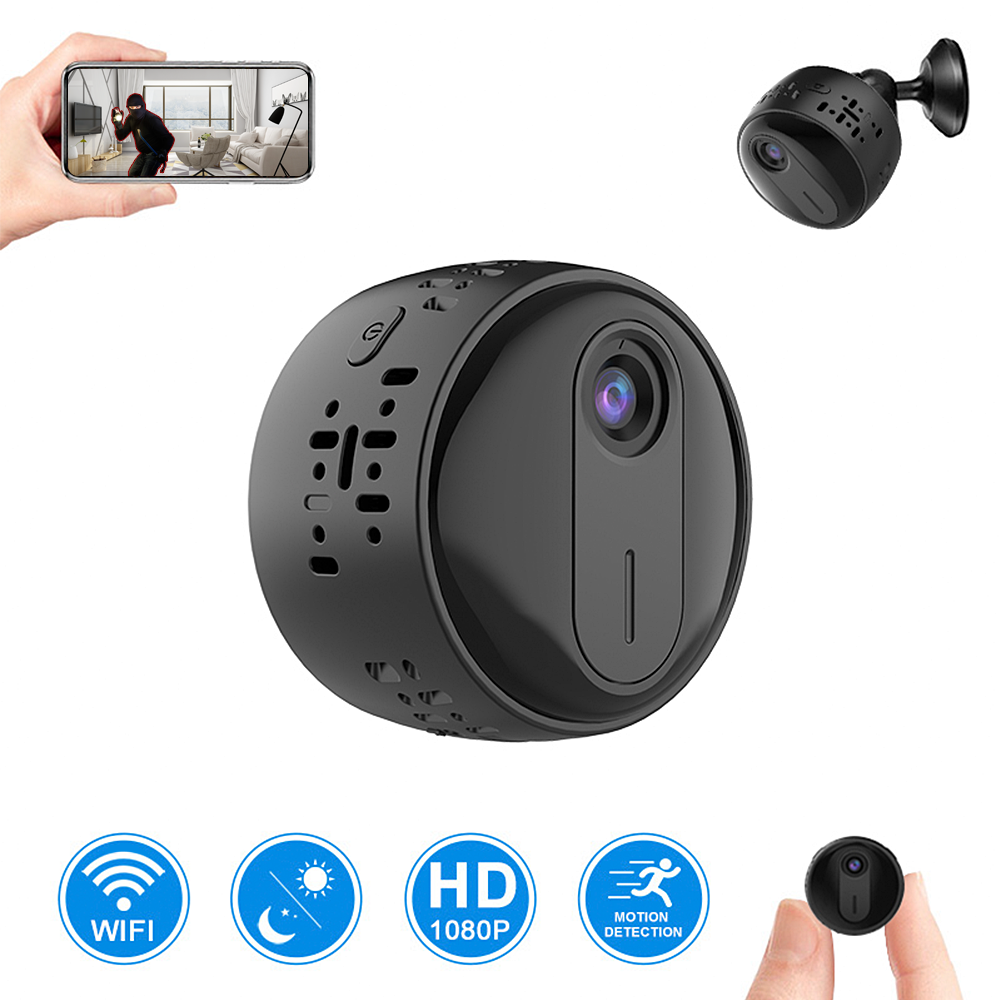

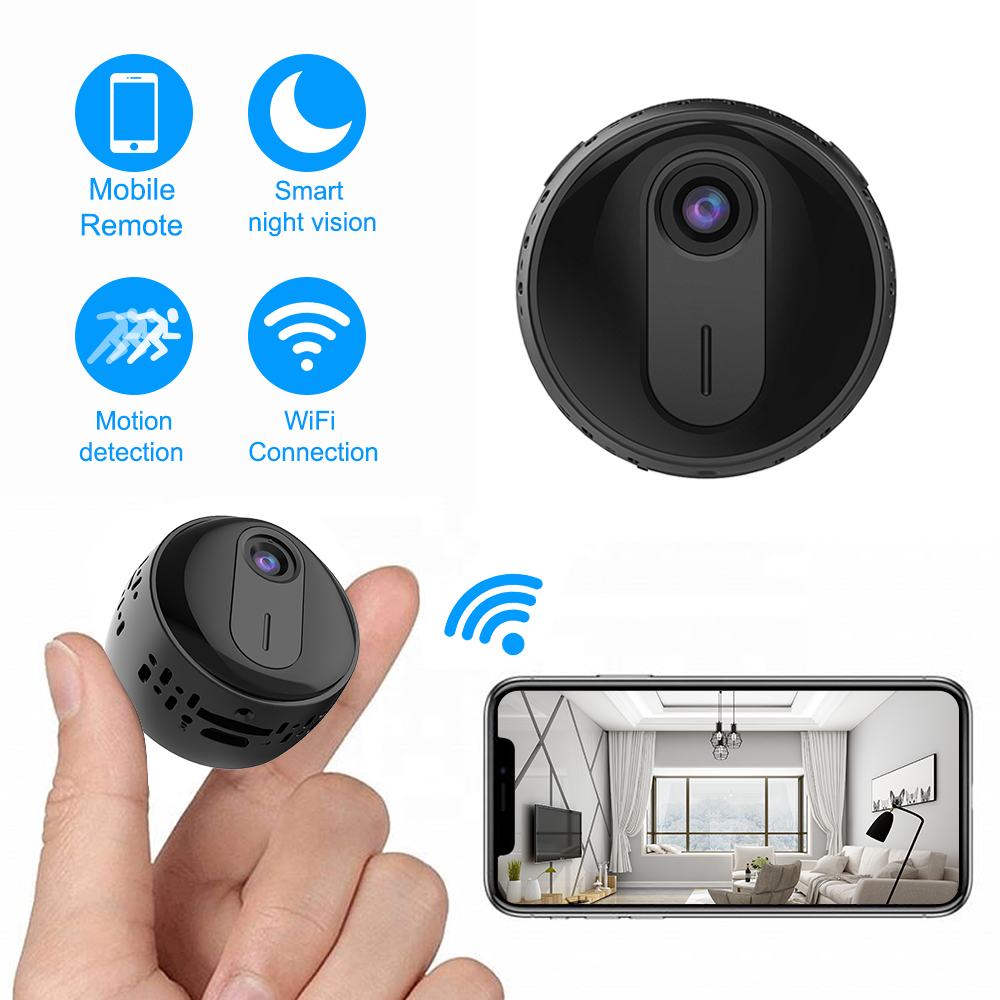

V380 2MP HD 150° wide angle Built in battery IP MINI Camera
Wireless Wi Fi connection, remote monitoring
1080p HD pixels make the vision clearer and life more wonderful
With 6pcs smt2835 chips infrared lamp, various night vision modes can be adjusted at will. From then on, we bid farewell to the single night vision mode and add color to night shooting
Small cameras can be placed anywhere
This is a mini monitor with a wide angle that rotates 150 degrees to capture a wide field of view
Support AP hotspot not afraid of disconnection
TF card record storage
The mini camera has built-in PIR and mobile detection. When the alarm function is turned on, it sends voice alarm and picture push to the mobile phone
Product details
Parameter information of mini camera:
Model number：VH3-HB
APP：V380 Pro
Pixel：1080P (1920*1080P)
Sensor：AK V300+2232H
Lens：Focal length 2.6mm aperture F2.4
Resolution: 1920*1080P
Video frame rate（Daytime, night vision, HD, Puqing）：15fps
Code stream: H.264
View angle: 90 degree
night vision distance: 3~5m
Infrared compensation: 6pcs SMT2835 chips infrared lamp (940nm)
WiFi Fixed frequency：2.4G RTL8188EUS
Loop recording function：yes
Battery type：Lithium polymer 3.7V
Battery capacity：500mA
Day mode recording time：about 1.4 hours25℃
Power consumption of daytime video recording：about 355mah 3.7V
Night vision mode recording time：about 1.3 hours 25℃
Night vision video power consumption ：about 360mah 3.7V
Recording distance：3~5m
Speaker：No
WiFi Connection distance：≥30m（Open without interference and obstruction）
Point to point distance：≥30m（Open without interference and obstruction）
Video format：AVI
Video memory per minute：4-5MB
Indicator type / Qty.：3pcs LED (red yello blue )
USB：Mirco-USB
Charging requirements (rated constantvoltage current)：5V、1A
Supported systems, players：Windows、IOS、Android Storm video
Memory card capacity：Support 128G max（ format is required)
Product size：Diameter 40mm * height 26mm
Packing size：Length 10.5 * width 10.5 * height 4.5cm
Temperature：5~40℃
Humidity：relative humidity 45％~86％
This product is only suitable for indoor environment. It is strictly forbidden to block the cooling hole
Small camera product list:
1 * small WiFi camera
1 * built in battery 500 Ma
1 * power cord
1 * user manual
1 * Support
